Quick Reference Guide: Wire File Data Transmission via sFTP

Overview

The Wire File Data Transmission via sFTP feature of the Treasury Management platform meets the needs of higher volume wire originators and can improve integration with a business payment process. This solution will provide the bank customer with the ability to send wire files to Treasury Management via SFTP (Secure File Transfer Protocol). The capabilities include utilizing the existing file mapping function, intuitive file upload workflow, and reports. Note: The workflow supports the existing fraud and risk controls that exist with the platform such as alerts, approvals and two factor authentication. This capability is completely controlled by the bank. It becomes available to a company and its users only after the features for wire upload are enabled at the bank and company levels in the TM Back Office.

Benefits

Benefits for Banks

  • Additional key wire payment capability, especially for high volume businesses.
  • Back Office Report providing visibility into the wire file activity.
  • Ability to charge via Enhanced Account Analysis through a billing counter.

Benefits for Customers

  • Eliminates the need to input individual wires when volume is a concern.
  • Easy to use file mapping tool allowing flexibility while creating or updating formats.
  • Enabling end user to process, delete, view, and review the file.
  • Wire File Activity reporting to easily track wire file activity.
  • Additional fraud risk point controls.

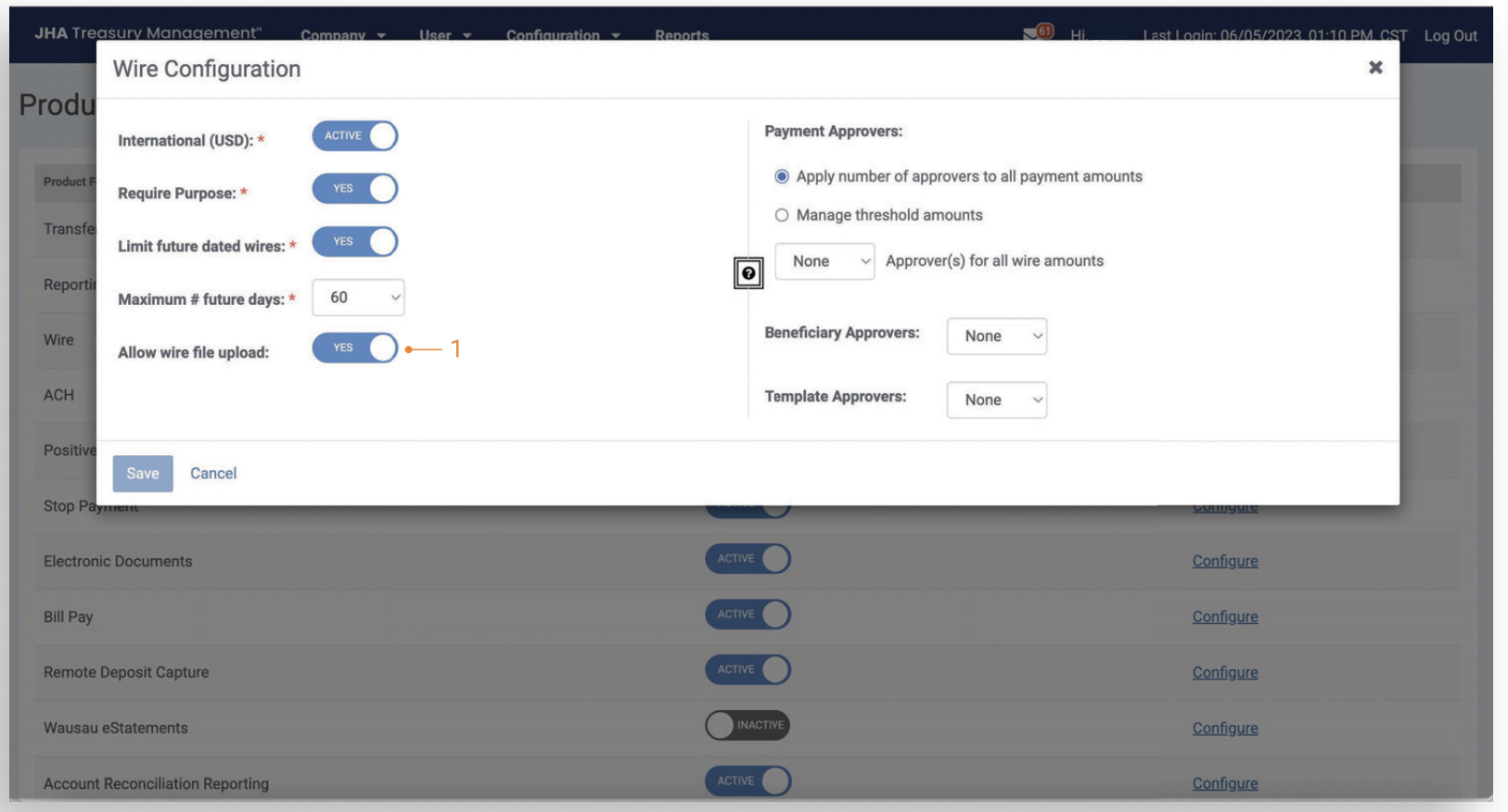

Back Office - Product Configuration

  1. Product Configuration

Wire File Upload can be enabled within the Wire Configuration of the Product Feature Configuration. Once it has been enabled, configuration settings for active companies will be applied. This configuration will be utilized for manually uploaded files and files sent via sFTP.

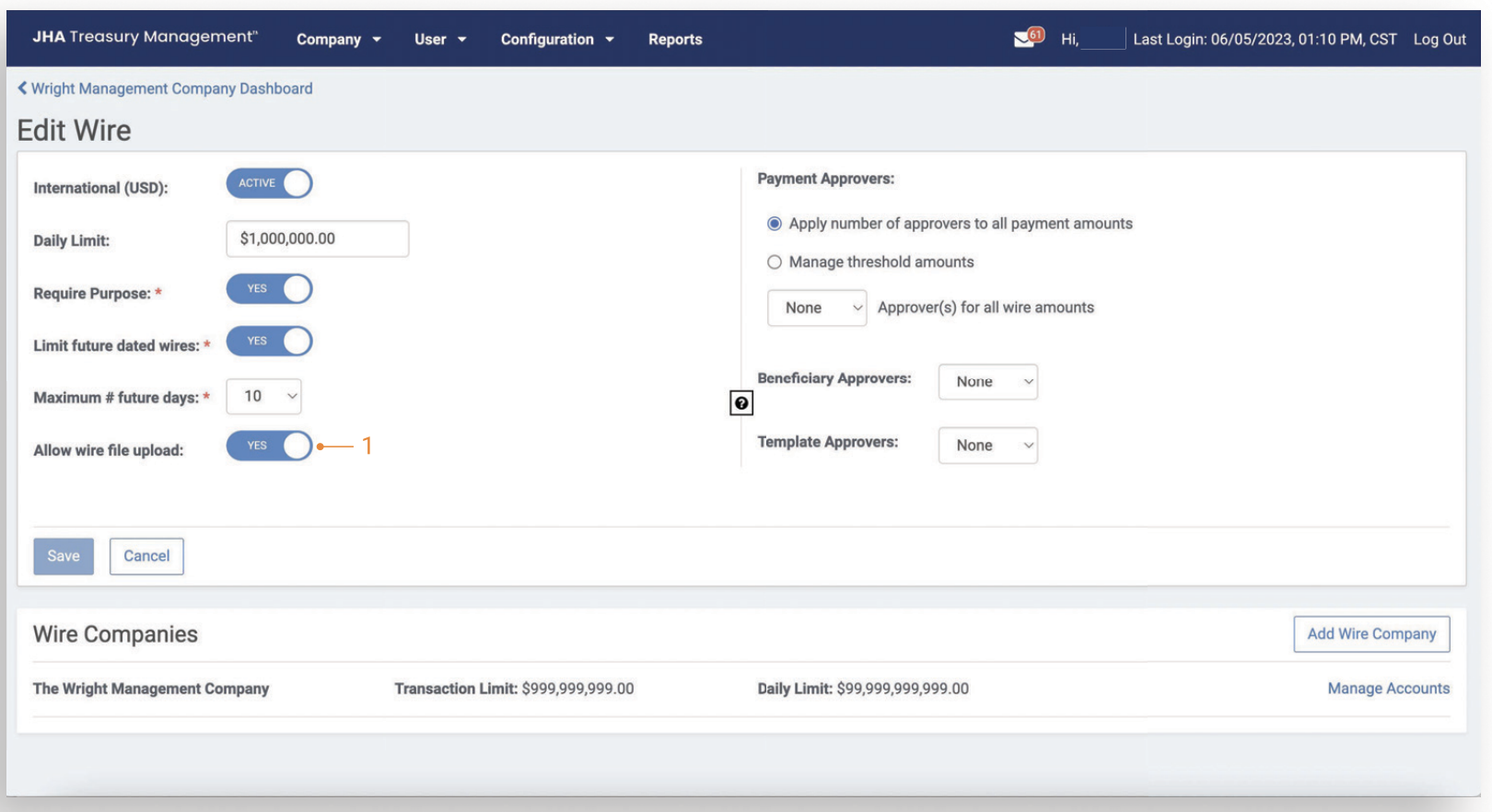

Back Office - Company Configuration

  1. Company Configuration

To enable this feature for a specific company, navigate to their Company Details page and select Wires from the Product Features widget. Selections will be applied when the Product Configuration is set to Yes.

Tip: The Company Configuration can be modified while the Product Configuration (Allow Wire File Upload) setting is set to No and the changes will be applied when the Product Configuration setting is set to Yes.
Note: In addition, when the Product Configuration is set to No, customers will not have access to this functionality nor will they see any of the navigation options.

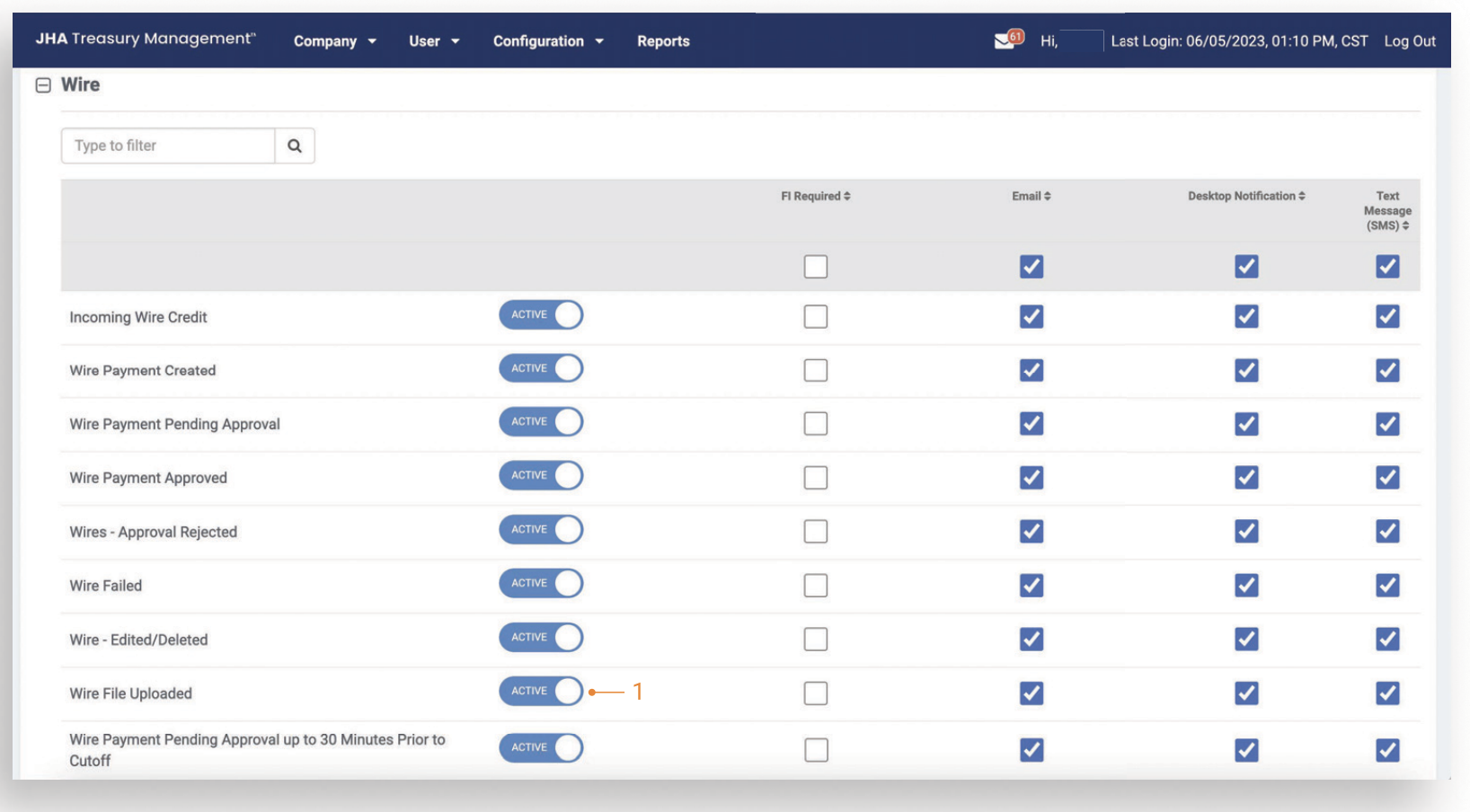

Back Office - Notification Configuration

  1. Notification

Wire File Uploaded will alert a user when a wire file has been successfully uploaded or a transmitted file has been processed in Treasury Management. To receive this notification, a user needs to be entitled for the Wire Company as well as have the following user entitlements enabled:

  • Wire File Uploaded
  • Create Domestic Wire

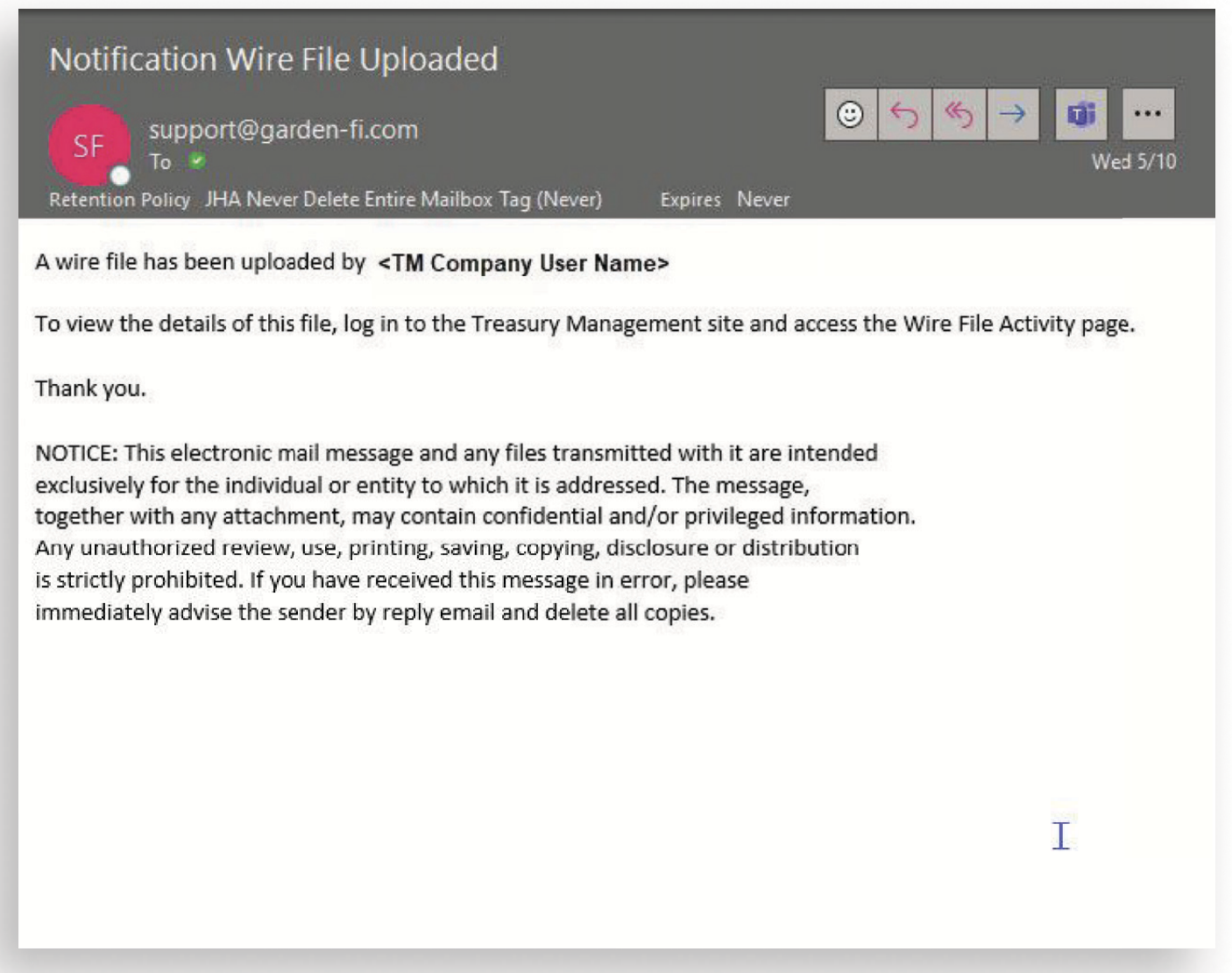

Sample Notification

Note: Notification will be sent to all users for the TM company that have enrolled in the notification ad have access to the Wire Company.

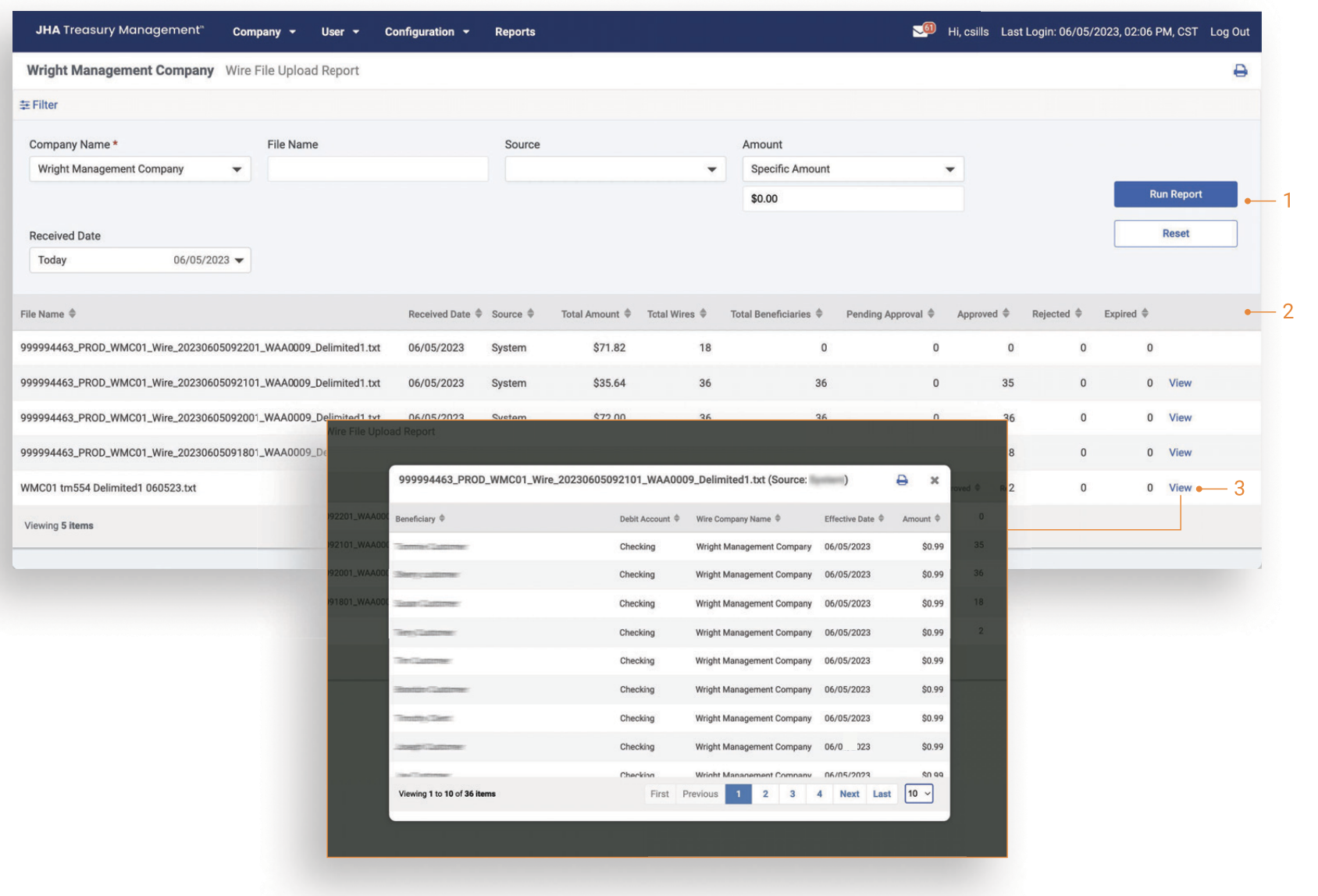

Back Office - Wire File Upload Report

Back Office report that provides information about the files uploaded or transmitted vis SFTP.

  1. Search Report Results will be based on the search criteria that is used.

  2. Report Results

  • Received Date
  • File Name
  • Source
    • If file is transmitted, Source will be = System.
    • If file is manually uploaded, Source will be = company user who uploaded the file.
  • Amount

The total amount of the wires in the file.

  • Total Wires

Includes any wires that were excluded from processing during file upload

  • Total Beneficiaries

Number of unique beneficiaries

  • Approved
  • Pending Approval
  • Rejected
  • Expired
  • File Size
Note: Files listed with zero count, and zero-dollar amount are transmitted wire files that encountered errors upon ingestion. Error details can be viewed on the Wire File Activity page in Channel.
  1. View

Select View to display the list of wires included in the file. The list of wire transactions will open in a modal.

To view additional detail for a wire, use the existing Wire Payment Activity Report.

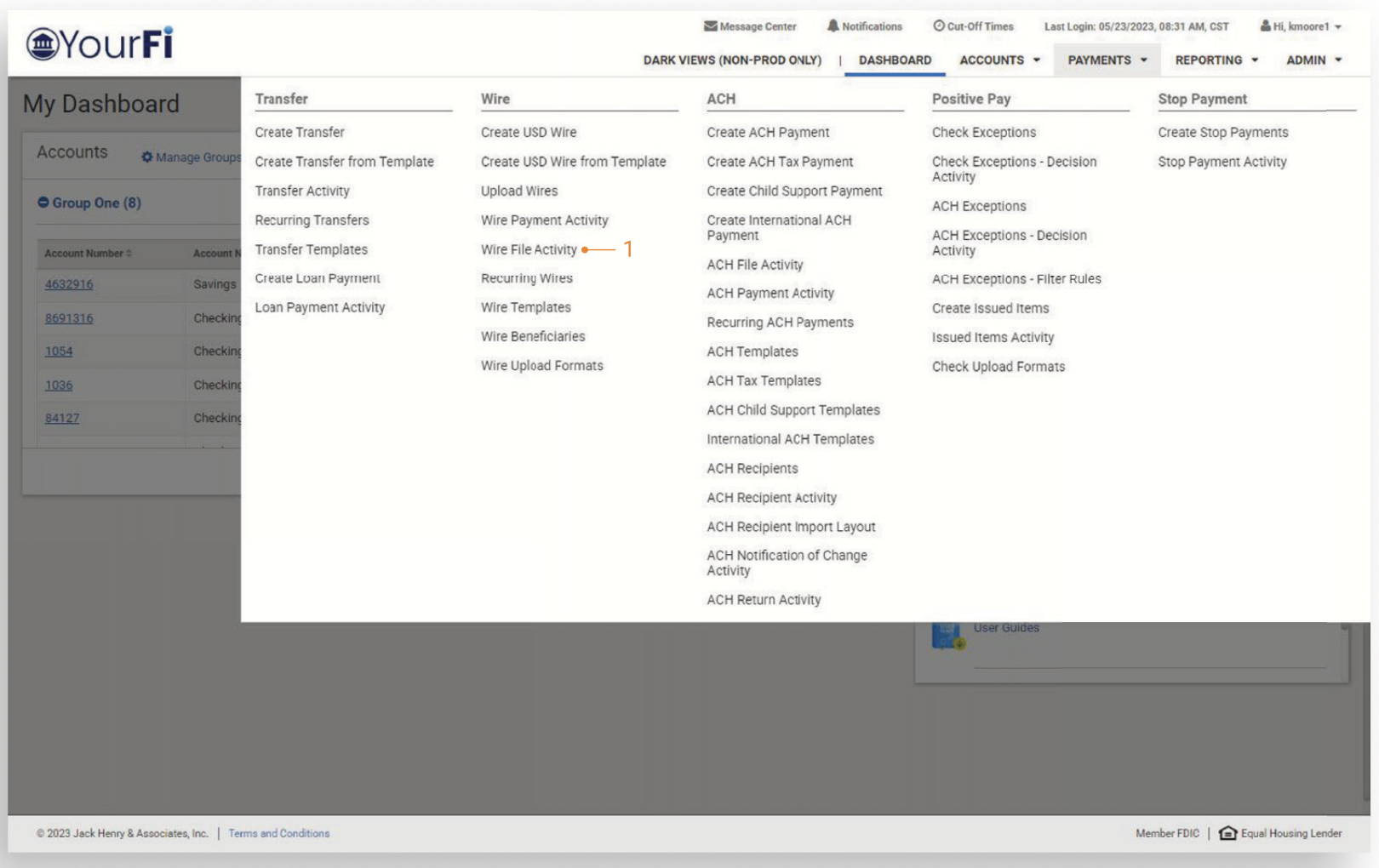

From the main navigation, users can:

  1. View Wire File Activity

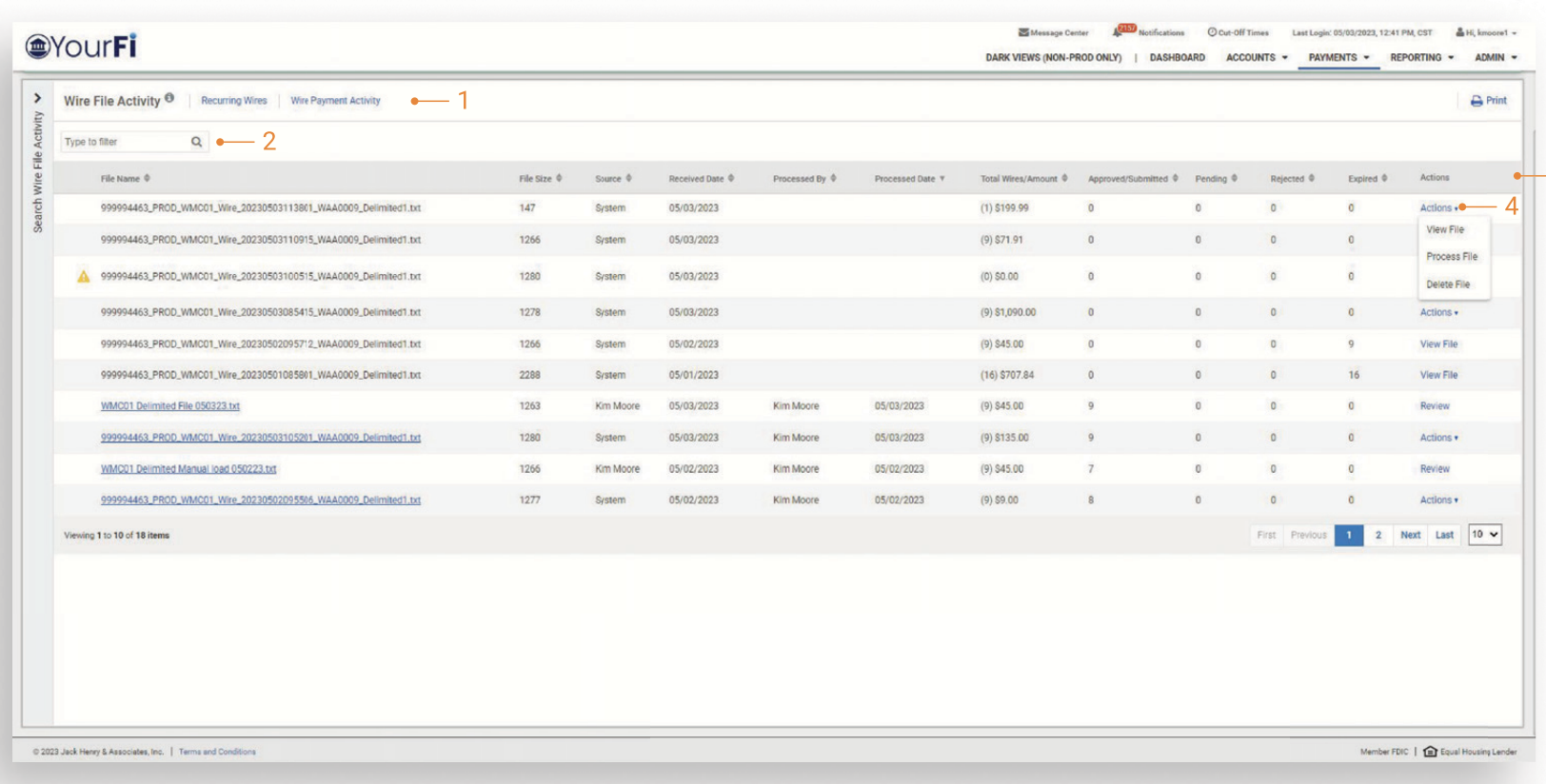

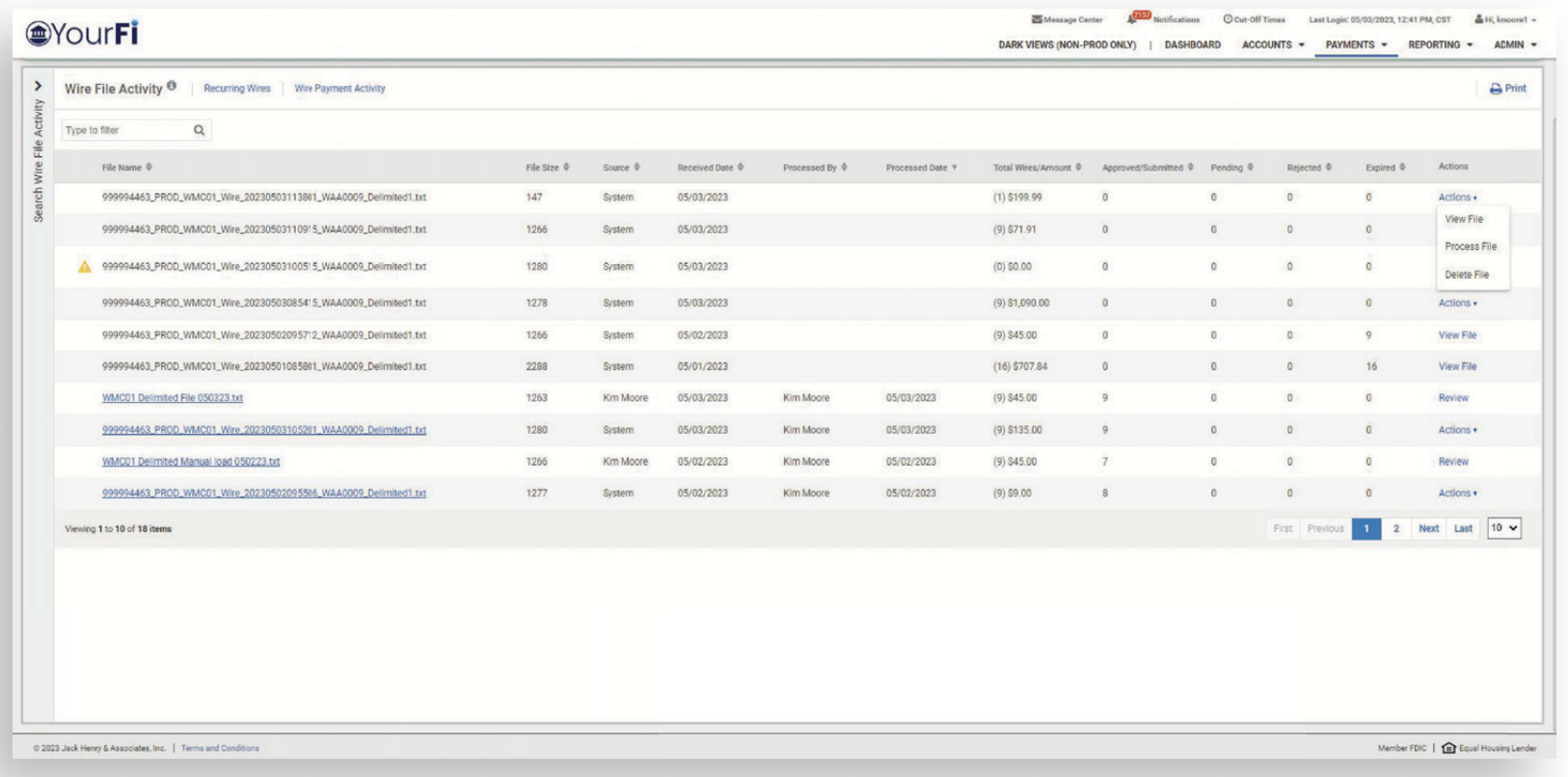

Wire File Activity

Wire File Activity view will display a list of wire files that have been uploaded or transmitted via SFTP.

  1. Quick Navigation

Users can quickly navigate between page views (Wire File Activity, Recurring Wires, and Wire Payment Activity).

  1. Type to Filter

Users may utilize the Type to Filter in order to narrow the results. This feature will filter across the results to refine based on the users entered criteria.

  1. Information Available

    • File Name (Link to wire transactions)
    • File Size
    • Source (User or System)
      • If file is transmitted, Source will be = System.
      • If file is manually uploaded, Source will be = company user who uploaded the file.
    • Received Date
    • Processed By
    • Process Date
    • Total Wire / Amount
    • The status of the wires including
      • Approved / Submitted
      • Pending
      • Rejected
      • Expired

  2. Wire Actions

For a wire file transmitted via SFTP, users will have the ability to Process, View, or Delete the file. To see a list of wires transactions that were included in the file select Review or click the File Name.

Once the transmitted file has been successfully processed, the actions to Process and Delete will no longer be available. The action to Review and View file will be the only available actions.

If the file is not processed by a company user before the next cutoff, the file contents will expire and the only action available will be to View the file.

Note: For manually uploaded files, the only action available is Review.

Wire files transmitted via SFTP will use the Source of System.

Received Date will be the date the file is transmitted via SFTP or manually uploaded by a company user.

Processed By and Processed Date will be the date a company user either manually uploads a file or takes the action to process a transmitted wire file.

Tip: Navigating to Wire Payment Activity has 2 paths. First, when navigating from Wire File Activity by selecting Review or File Name, user will see only the wires associated with the selected file on the Wire Payment Activity page. Second, selecting Wire Payment Activity from the main navigation menu, users will see all wire activity which includes pending approvals, future dated, as well as wire history.

Wire Activity - File Hyperlink

  1. File Name

Users can navigate to the Wire Payment Activity page for a specific wire file by using the REVIEW action on the Wire File Activity page. When this action is selected, the user will be taken to the Wire Payment Activity page with just the wire transactions for that specific file presented. The file name displayed on the Wire Payment Activity page is a quick link, allowing quick navigation back to the Wire File Activity page, with details specific to the wire file.

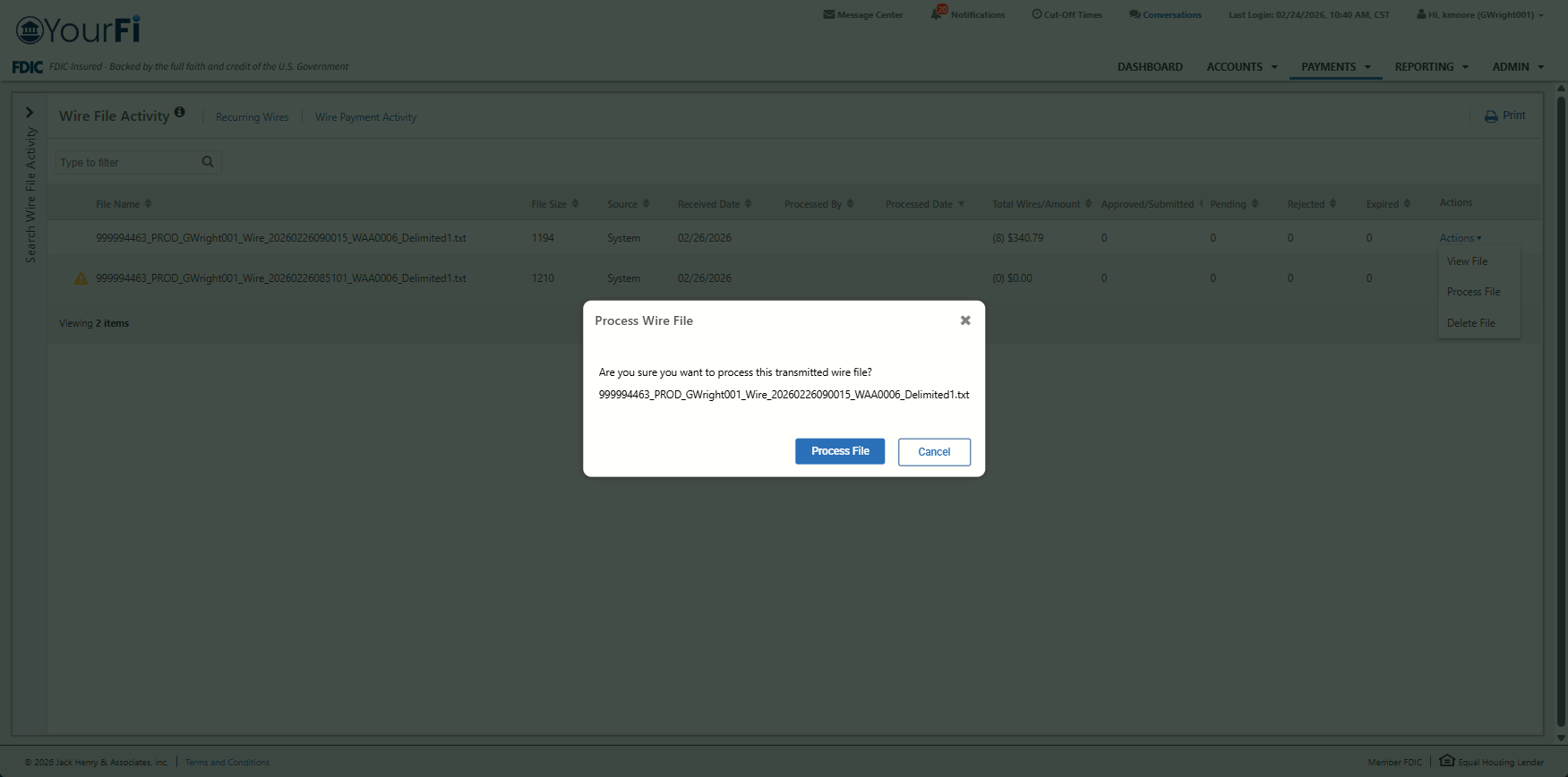

Wire File Activity Process Workflow - Process Confirmation

  1. Process Wire File

When the action to Process a file is taken, the user will be presented with a confirmation message asking if they are sure they want to process this transmitted wire file. The message will include the wire file name and a button to Process File or Cancel.

  • Process File – selecting this button will take user into the Process file workflow and the user will land on the Process Wire File Summary page.

  • Cancel – will return the user to the Wire File Activity page with no action taken on the file.

Note: If a file is transmitted after cutoff and user attempts to process the file, the effective date of the wire transaction must be the next business day or greater for the user to be able to complete the workflow successfully. If the user attempts to process a file after cutoff with wire transactions that have an effective date of the current day, the user will be allowed to walk through the workflow but will receive an error on the final page “There was a problem finalizing your wires, please try again”.

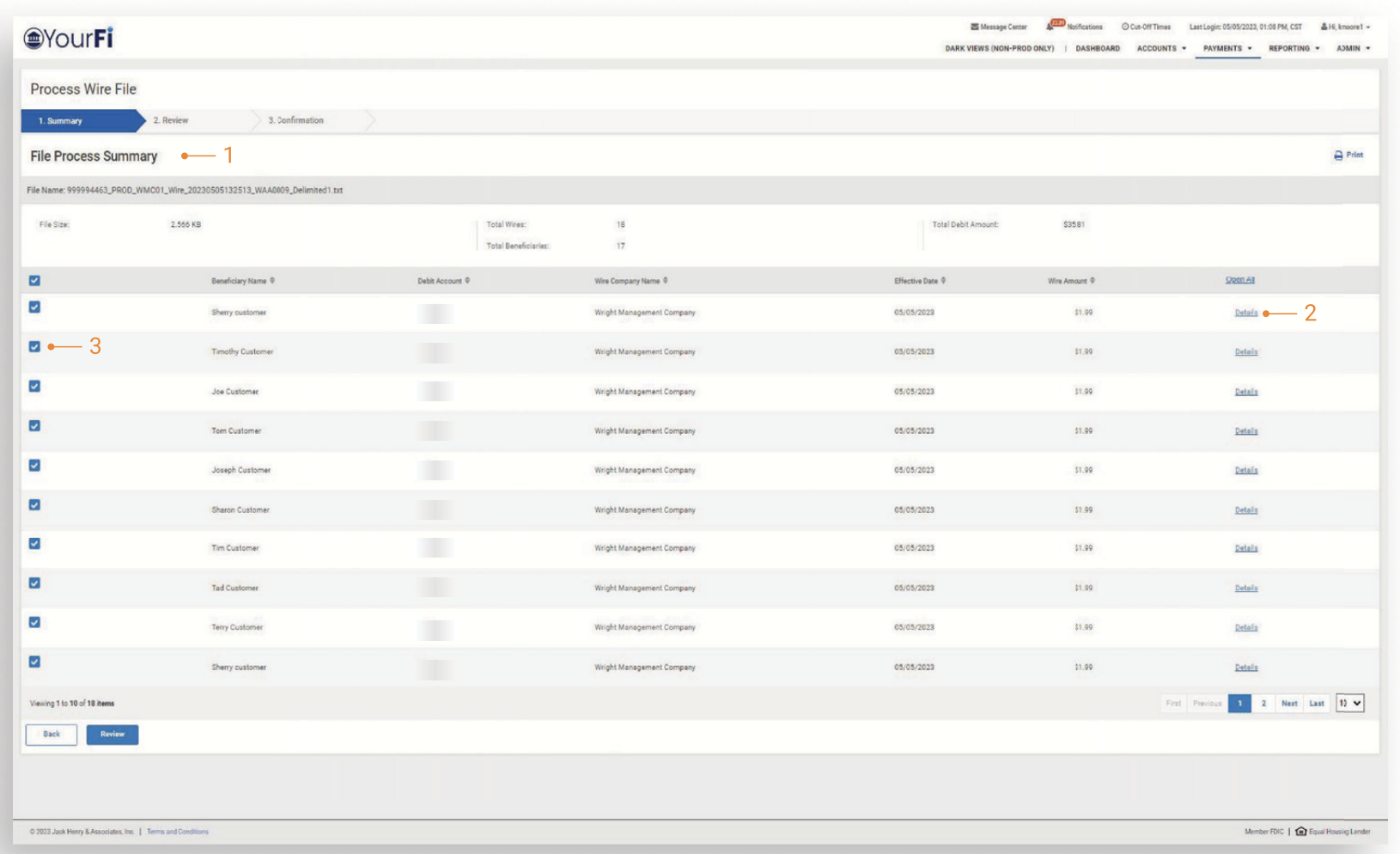

Process Wire File Workflow - Summary

  1. File Summary

After a file has been selected for processing, users can view a summary of file information including the file name, summary information (File Size, Total Wires and Beneficiaries, and Total Debit Amount) and a list of wires included in the file.

  1. Wire Details

Payments details can also be viewed by selecting Details, which will display the details for the selected wire. A user can edit some payment information within the Summary portion of this work flow.

Fields that can be edited:

  • Wire Amount
  • Frequency
  • Effective Date
  • Purpose
  • Additional Information
  • Reference Beneficiary
  1. Wire Selection

A user can choose to exclude a wire from being submitted for processing by un-checking it during review.

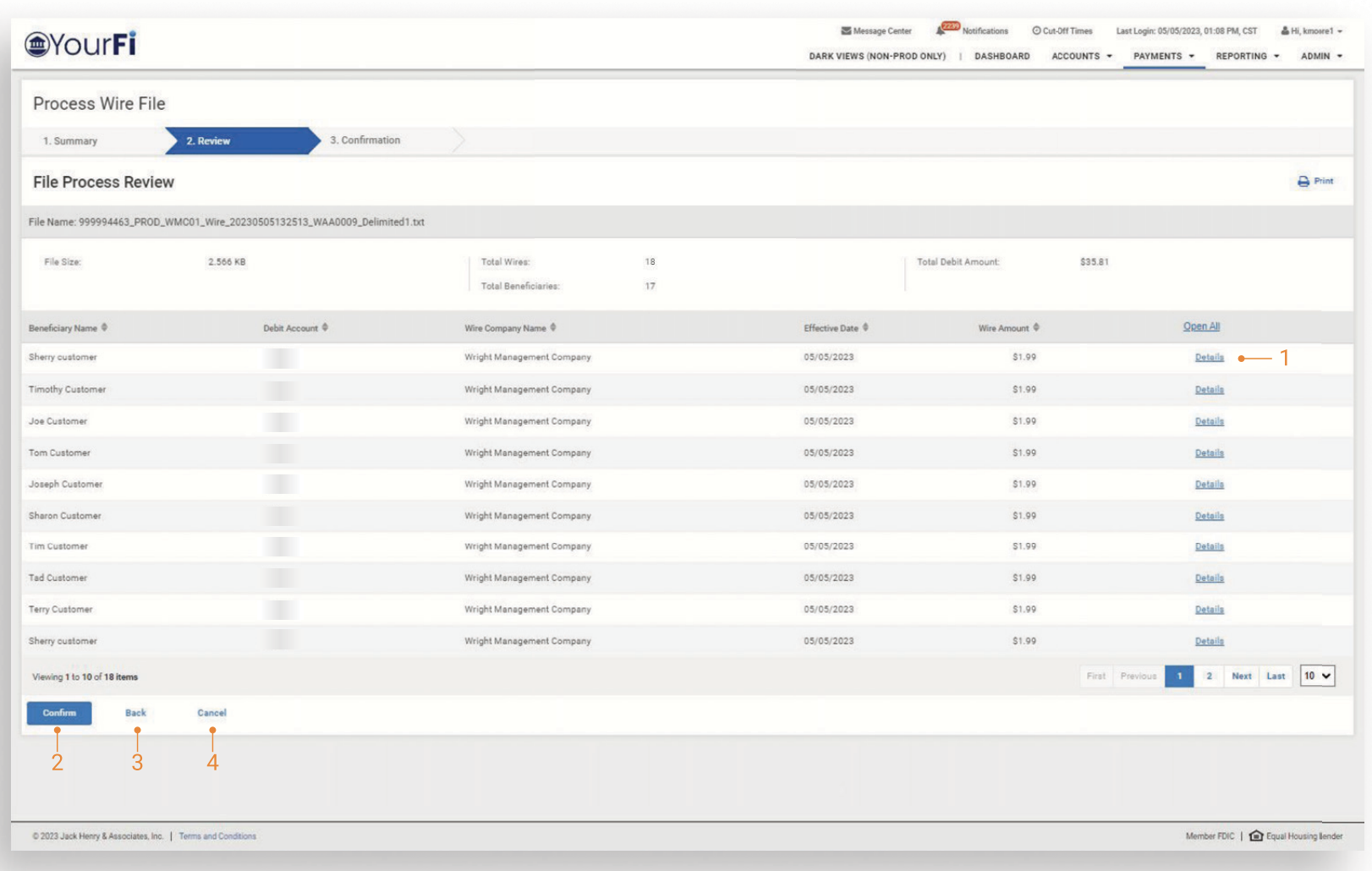

Process Wire File Workflow - Review

Users can review the wires a final time before submitting the wire payments by selecting the Confirm button.

  1. Wire Detail

Payments details can also be viewed by selecting details. Details will display the details for the selected wire. A user can edit some payment information within the Summary portion of this work flow.

Fields that can be edited:

  • Wire Amount
  • Frequency
  • Effective Date
  • Purpose
  • Additional Information
  • Reference Beneficiary
  1. Confirm

Select the confirm button to create the wire transactions and send them to core.

  1. Back

Select the back button to navigate to the Summary page and select the details link to make any changes to the payment information.

  1. Cancel

Selecting the Cancel button will present a modal asking user if they are sure with buttons to Continue Editing or Ok.

  • Continue Editing – will close modal and user can continue.

  • Ok – will close the Process Wire workflow.

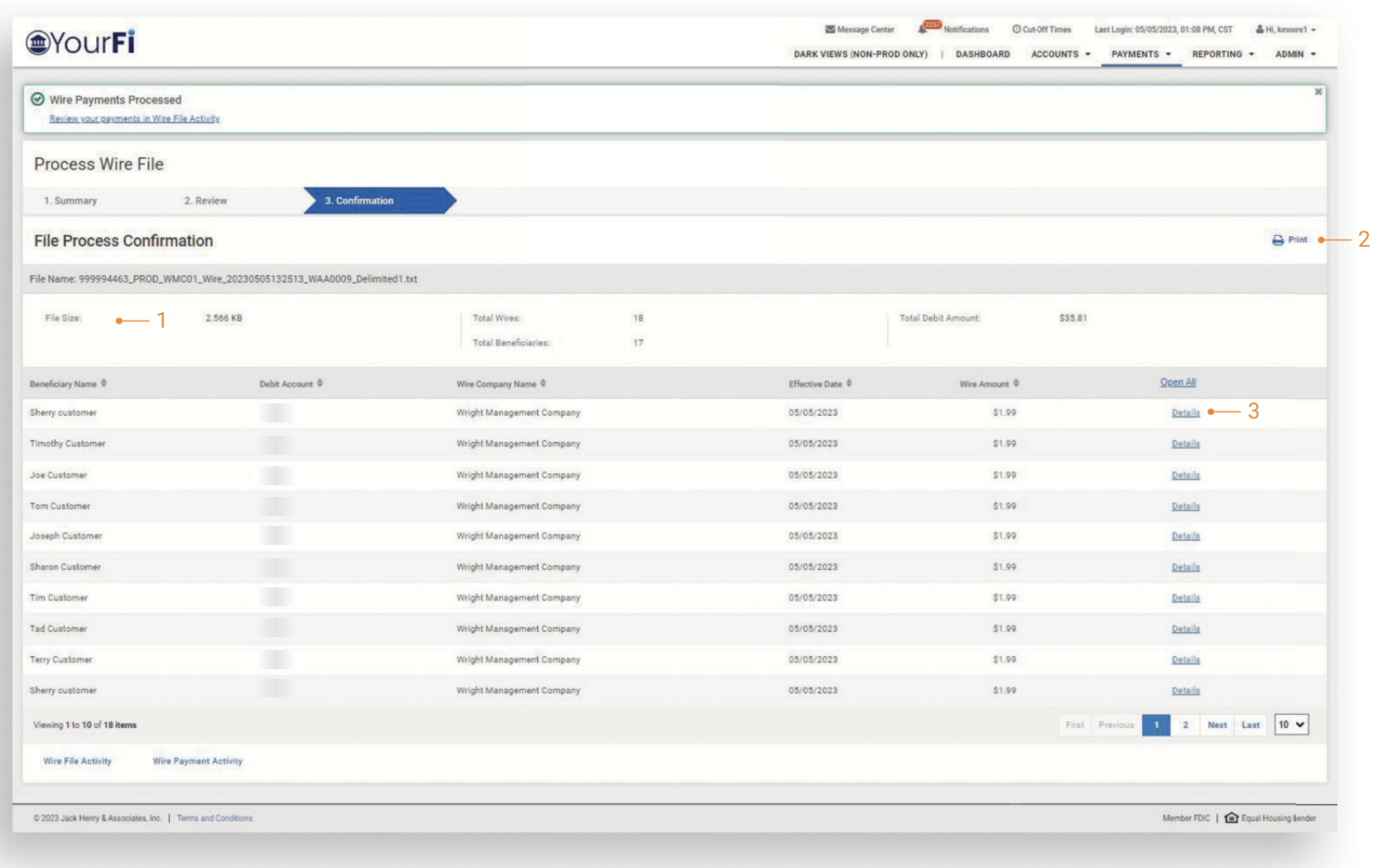

Process Wire File Workflow - File Process Confirmation

When a file is successfully processed and wire transactions are created, the user will be given a success message “Wire Payment Processed – Review your payments in Wire File Activity”.

  1. File Summary

After a file has been successfully processed, users can view a summary of file information including the file name, summary information (File Size, Total Wires and Beneficiaries, and Total Debit Amount) and a list of wires included in the file.

  1. Print

Selection of the Print icon will open the print dialog and print the details of each wire transaction created and processed.

  1. Wire Detail

Select Details to the view the detail for the selected wire.

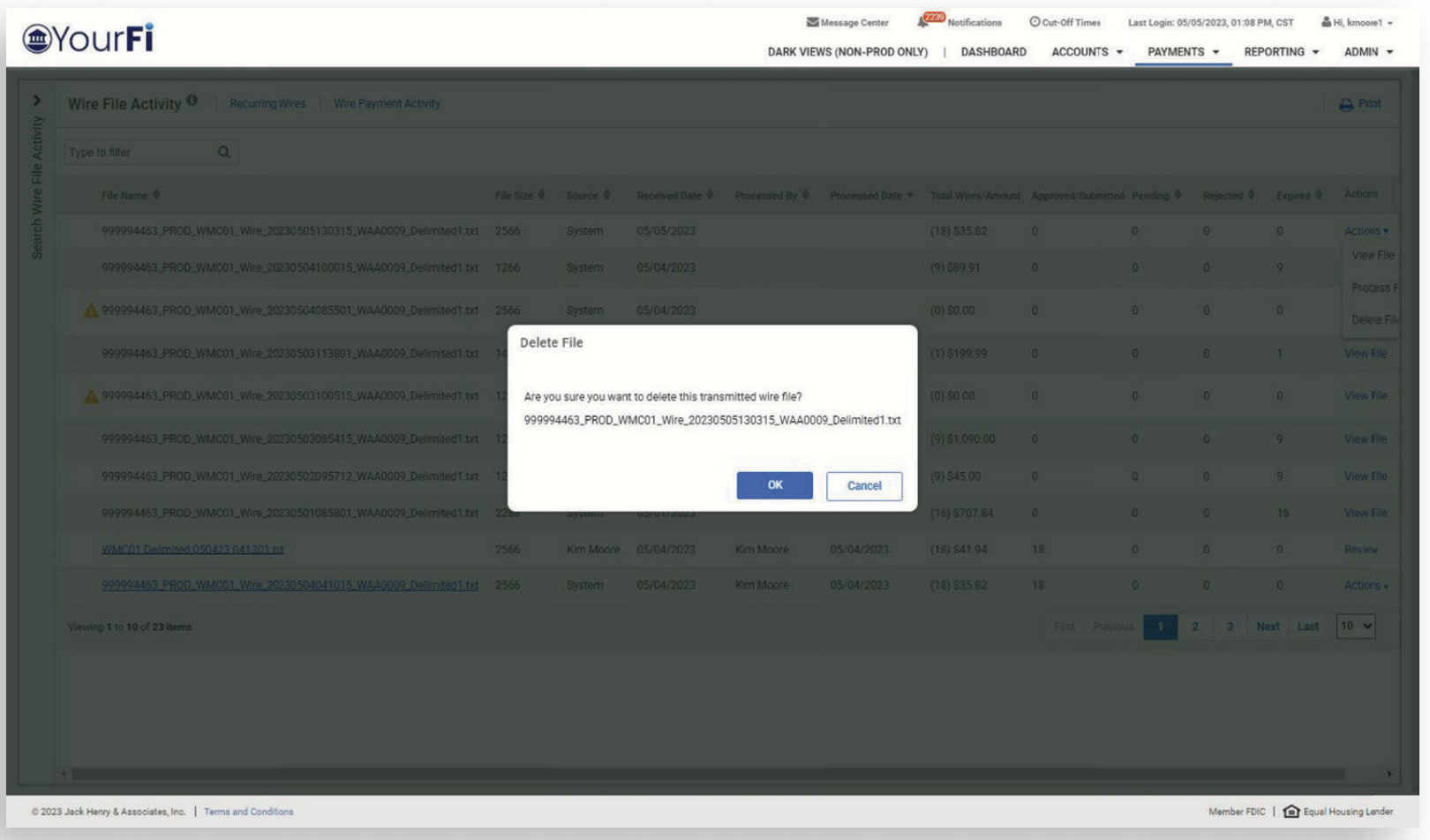

Wire File Activity Workflow - Delete File

  1. Delete Wire File

When the action to Delete a file is taken, the user will be presented with a confirmation message asking if they are sure they want to delete this transmitted wire file. The message will include the wire file name with OK and Cancel buttons.

  • OK – selecting this button will delete the wire file from the database and from the Wire File Activity page. No further action will be allowed on this file.

  • Cancel – will return the user to the Wire File Activity page with no action taken on the file.

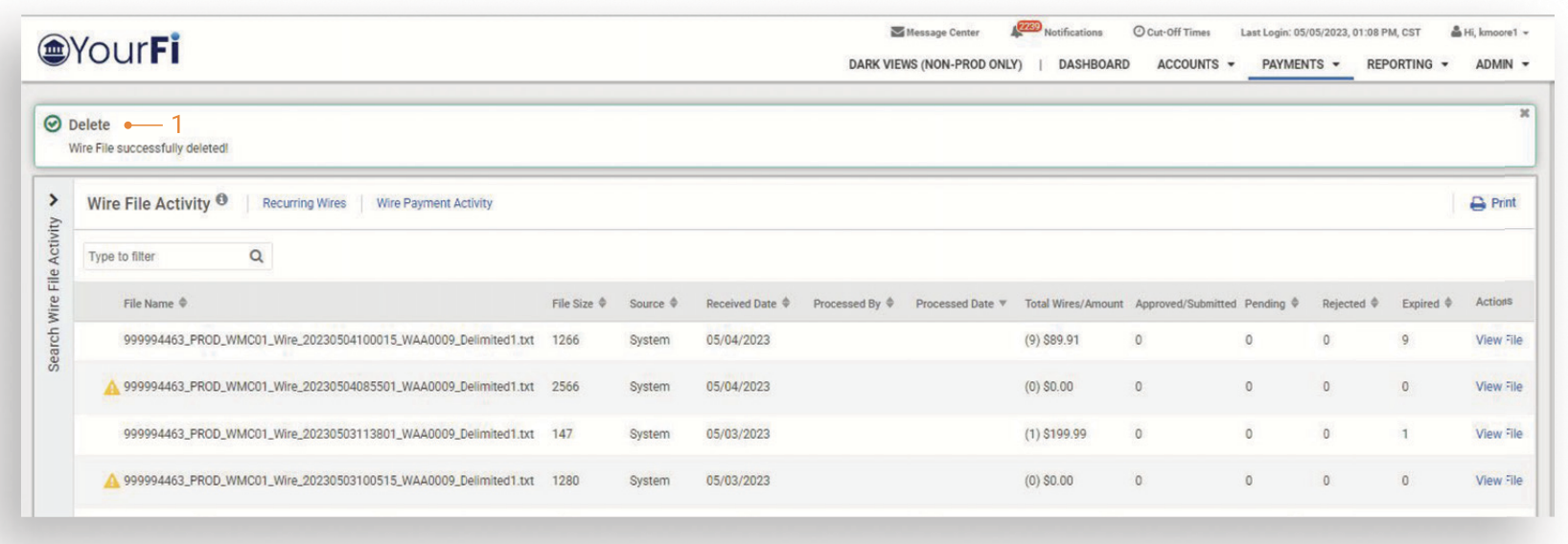

  1. Delete Wire File confirmation

When a wire file is successfully deleted, the user will be returned to the Wire File Activity page with a Delete successful message.

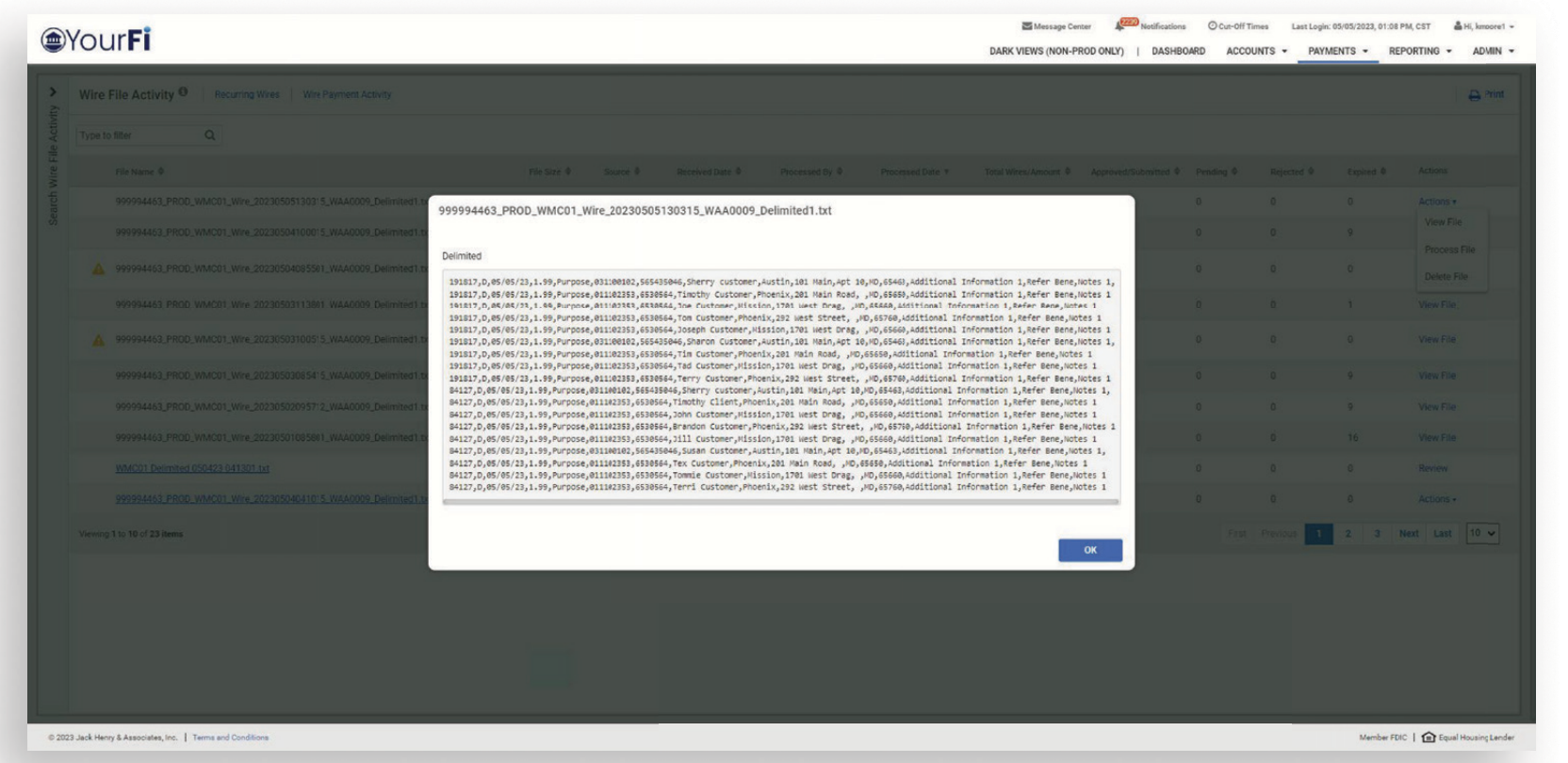

Wire File Activity Workflow - View File

  1. View Wire File

When the action to View a file is taken, a modal will be opened allowing the user to view the contents of the file, exactly as they were transmitted. The file name and file type will be located at the top left of the modal. A scroll bar on the right will allow the user to move up and down to view the file contents if they exceed what can be displayed initially.

  • OK - Using the OK button will close the modal.

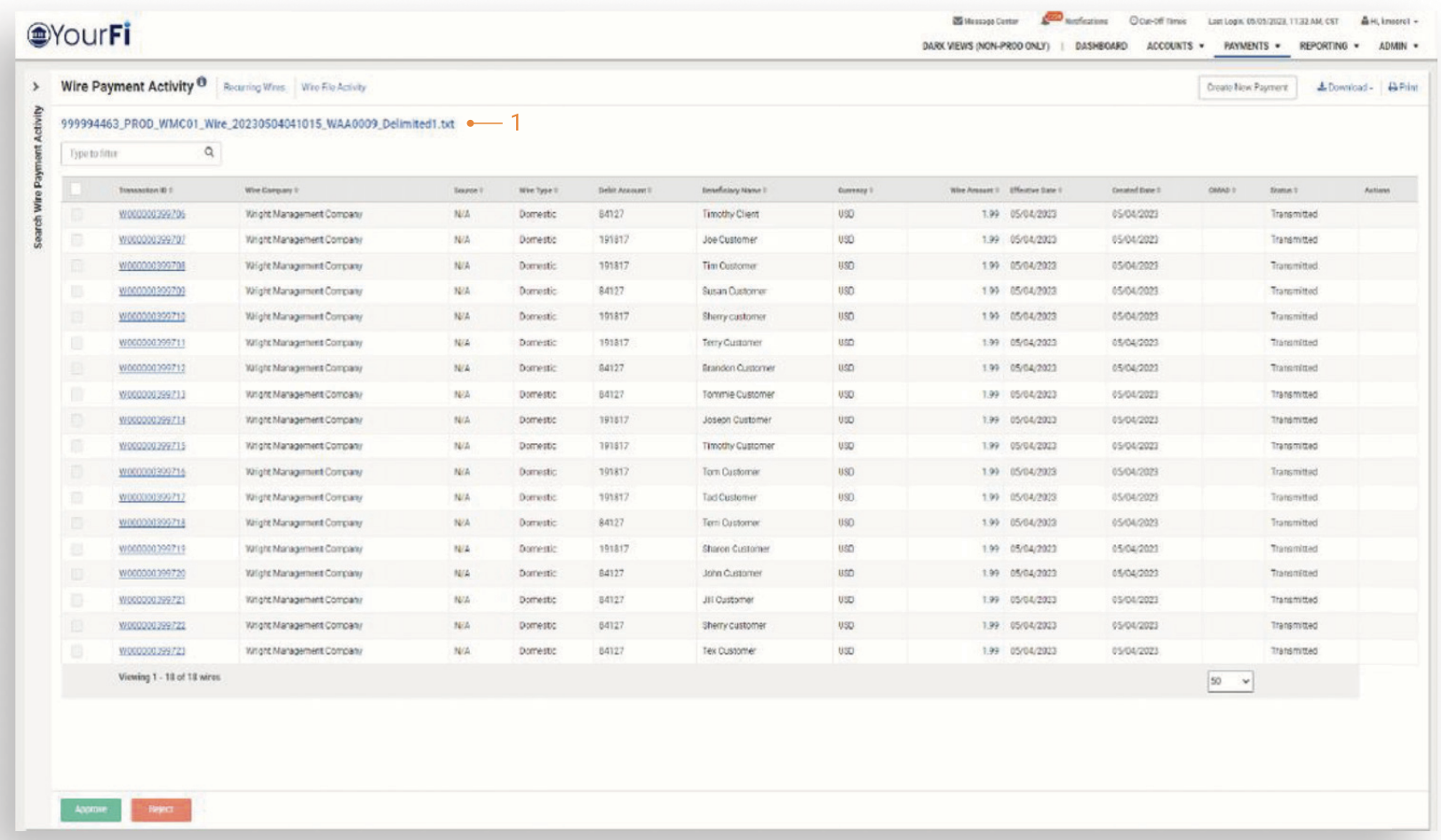

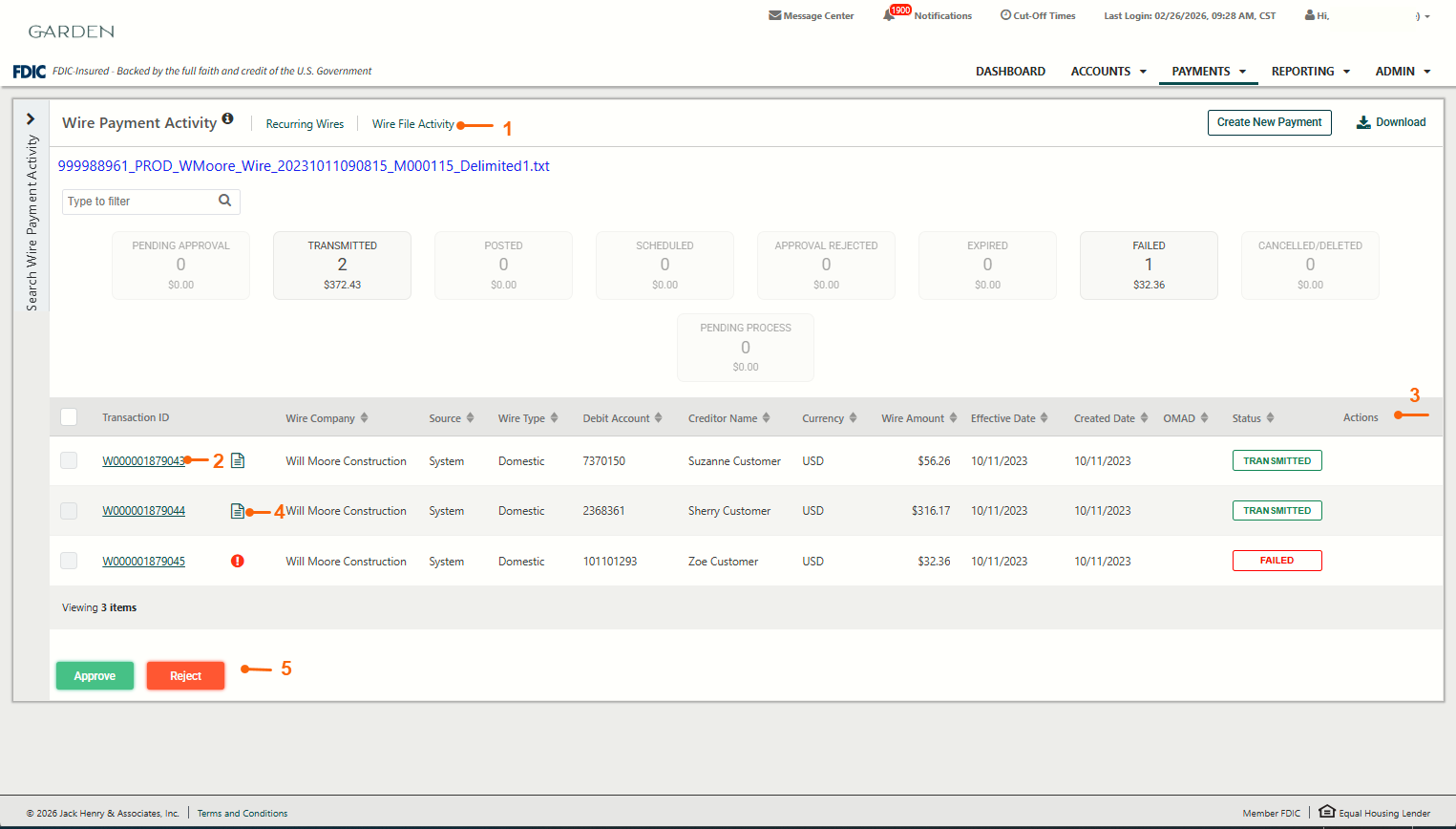

Wire Payment Activity

The Wire selected Activity page will list the wires that were included in the file.

  1. Quick Navigation:

Quickly navigate between Wire File Activity, Recurring Wires, and Wire Activity page views.

  1. Wire Detail:

Select the Transaction ID to view details. (Note: This includes the File Name for the uploaded wire).

  1. Action Menu:

If a payment is Pending Approval, users can Approve or Reject. If a wire is scheduled, selecting Cancel Wire will cancel the transaction.

  1. View File Icon:

Selection takes the user to the Wire File Activity page details specific to the file containing this payment.

  1. Action Buttons:

Users can select one, multiple, or all wires to approve or reject.

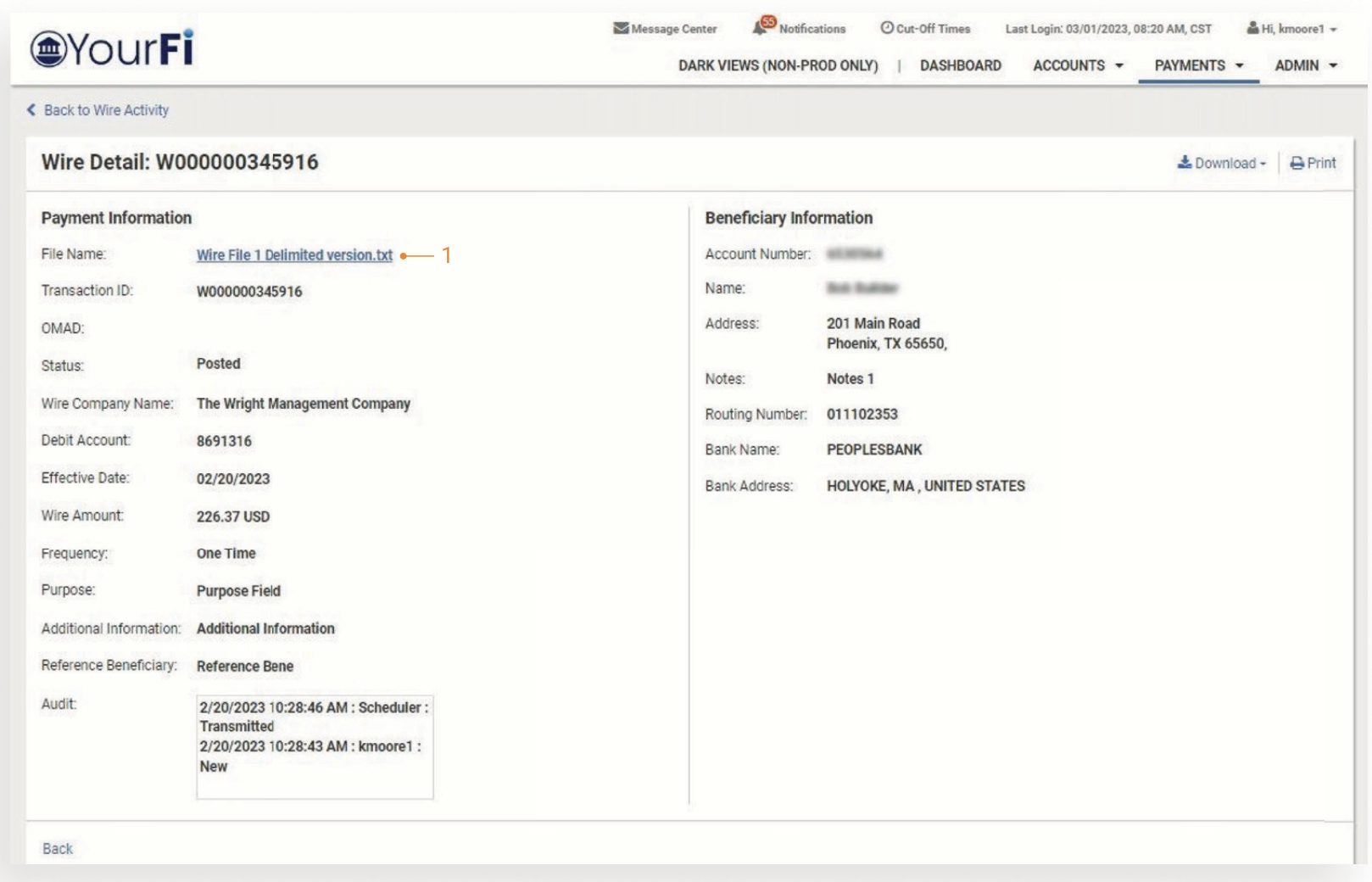

Wire Activity - Wire Details

The Wire Detail view displays specific details about a single wire transaction

  1. File Name

To view the details of the wire file, select the file name. The user will be taken to the Wire File Activity page with the details specific to the file containing this transaction.

Adding New Company to Wire File Data Transmission via sFTP Feature

(Assumption - A directory and folder structure has already been created for the bank’s first customer)

To add a new company to the Wire File Data Transmission via sFTP Feature, existing FIs should create a jSource case with the details below. The Jack Henry MoveIT team will create a folder and provide credentials to the Treasury Management Channel company administrator requesting access via the email specified in the case.

  • Provider: Enterprise File Integration Impl Internal
  • Problem Summary: Wire File Upload Directories and Folder Setup for Treasury

Description:

  • FTP Folder structure setup for support Treasury Management Transmitted Wire Files via sFTP
  • Please send credentials to: (Company Contact Name, Company Contact Phone Number, and Company Contact Email Address)
  • Folder Needing to be Created: /Home/treasurymanagement/(FI Routing #)/(tm unique company id)/environment (uat or prod)/wire/

Example: /Home/treasurymanagement/999988961/smacinc/prod/wire

Note: The folder name must be in lowercase. If a Treasury Company is already using MoveIT for other bank file movement processes, please reference the MoveIT user ID that you would like to have associated with the wire folder in the company contact details description. This will allow the company to use the same set of credentials for all processes that involve the MoveIT application.
